Details

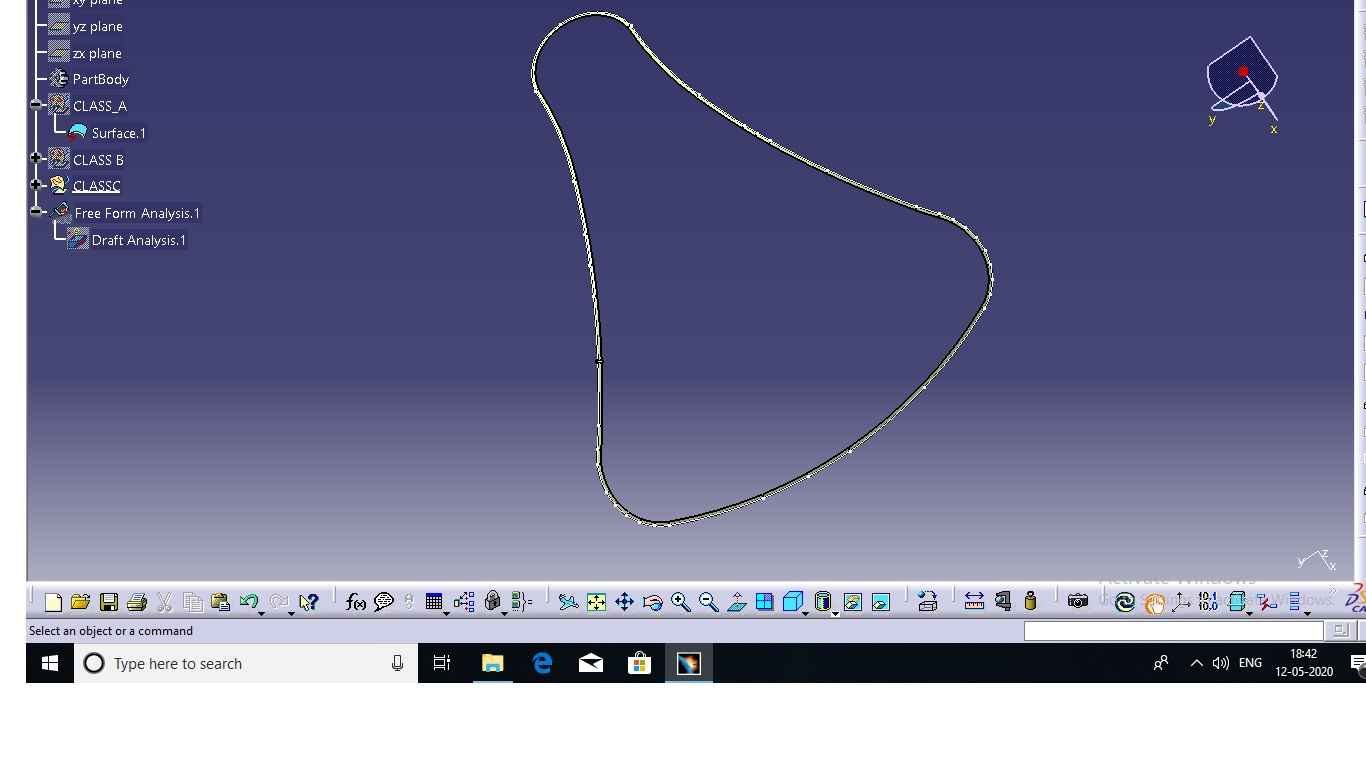

BASIC PROCESS FOR A TO B CONVERSION: Draft analysis at first very important to decide tooling direction. 1.A Surface-obtain from styler department. 2.B surface-offset of A Surface. 3.C surface-closing surface top side if all ok..then make it to solid using part modelling solid command.
Software
CATIA
Categories
Automotive Seating
Design
Industrial Design
Keywords
cycle seat complete solution
×
The CAD files and renderings posted to this website are created, uploaded and managed by third-party community members. This content and associated text is in no way sponsored by or affiliated with any company, organization, or real-world good that it may purport to portray.

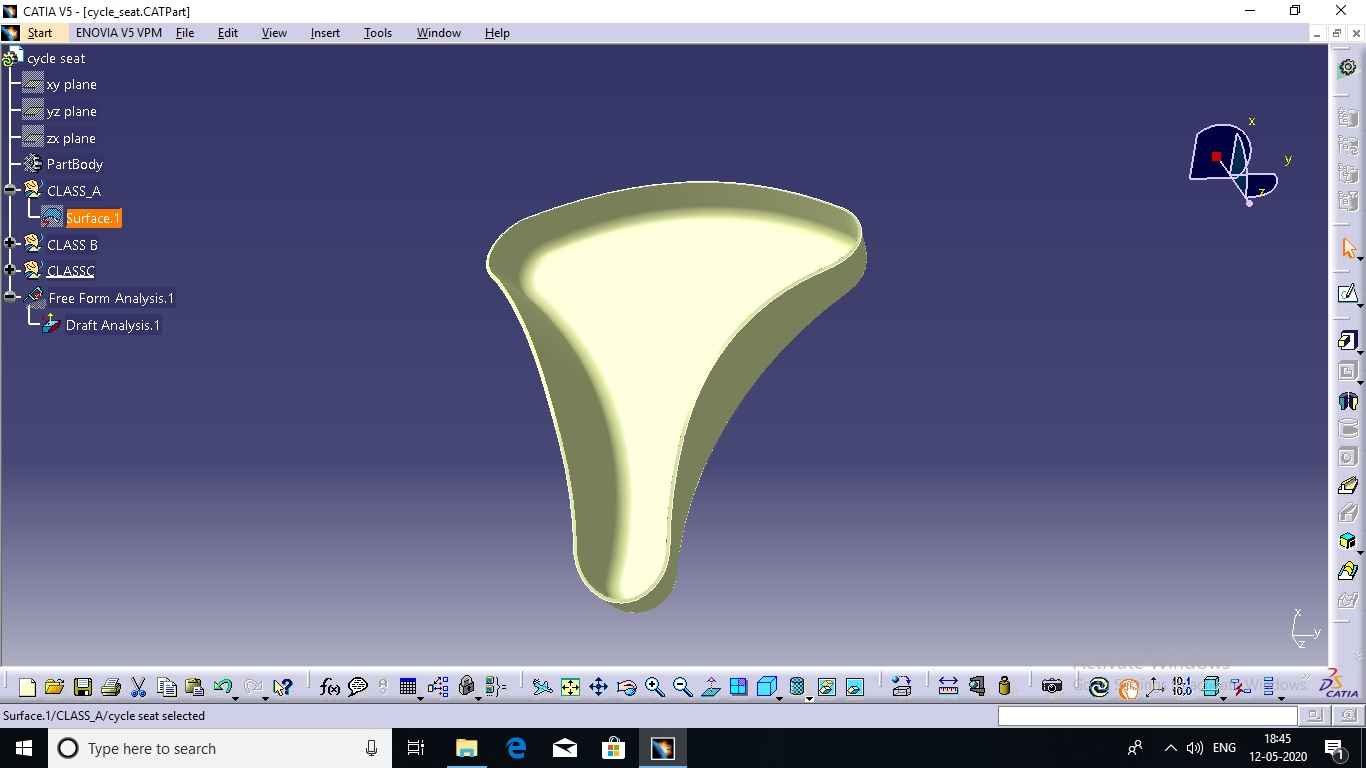

CYCLE SEAT A TO B CONVERSION Project 1
